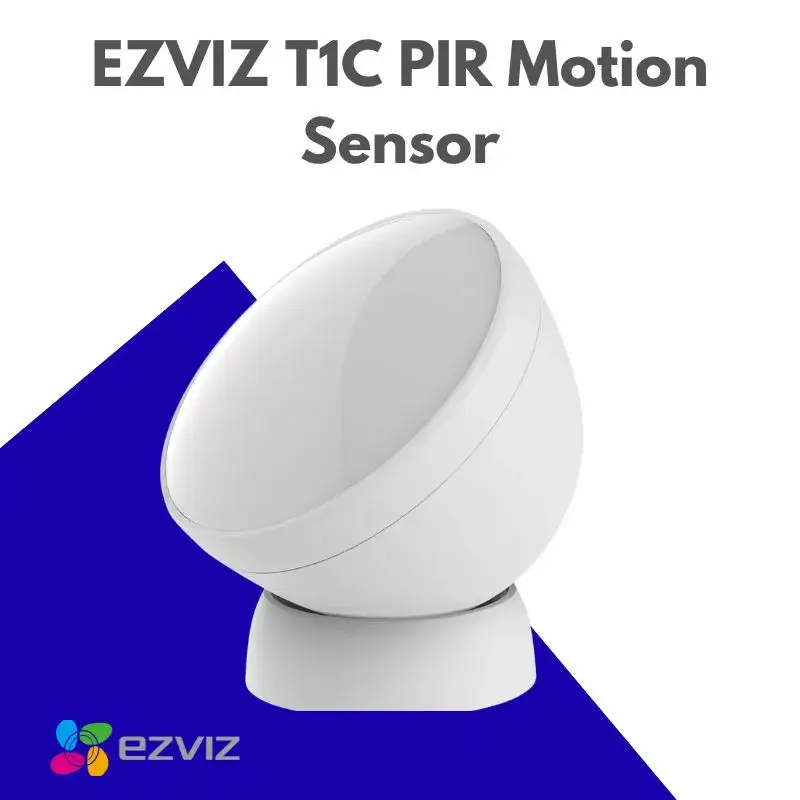

EZVIZ T1C PIR Motion Sensor – Reliable Motion Detection for Smarter Home Security

The EZVIZ T1C PIR Motion Sensor is a compact yet powerful addition to any smart home security setup. Designed with passive infrared (PIR) technology, it detects human movement with high precision and instantly alerts you via the EZVIZ App. Whether installed in hallways, living rooms, or office spaces, the T1C ensures you’re always aware of what’s happening at home. With 360° adjustable installation, pet-proof detection, and a long battery life of up to 2 years, it offers a seamless blend of convenience and protection.

Key Features Of The EZVIZ T1C PIR Sensor

T1C Instant Alerts

The T1C Motion Sensor packs smart detection, easy installation, and energy efficiency into a palm-sized device. Here’s why it stands out:

• 360° Adjustable Positioning for optimal coverage

• Pet Shield to reduce false alarms from pets

• Instant Alerts sent directly to your smartphone

• Anti-Tamper Alarm for enhanced security

• Energy-Saving Mode for up to 2 years of battery life

• Seamless EZVIZ Camera Integration for automatic recording

EZVIZ T1C PIR Motion Detector – Precision Human Motion Detection

The T1C uses passive infrared technology to detect the heat signature of moving humans, minimizing false alerts from objects or light changes. When installed at the recommended height, it provides a detection range of up to 7 meters and a 90° horizontal/vertical detection angle.
This makes it ideal for hallways, bedrooms, offices, and other indoor spaces where reliable motion sensing is crucial.

Smart Motion Sensor With 360° Adjustable Installation

Unlike fixed-position sensors, the EZVIZ T1C PIR Motion Sensor rotates 360 degrees, allowing you to fine-tune the detection angle. This flexibility ensures you can target the exact area you want to monitor.
Additionally, the pet-proof design lets you block part of the lens with the included shield so your sensor only responds to human-sized movement, not your cat or dog.

EZVIZ PIR Motion Sensor – Seamless App & Camera Integration

When paired with the EZVIZ Home Gateway A3, the T1C becomes part of a connected smart security system. Through the EZVIZ App, you can:

• Receive instant push notifications when motion is detected

• Link the sensor to compatible EZVIZ wired cameras to trigger automatic recording

• Use CloudPlay or local storage for video footage when the sensor is activated

Note: Sensor-triggered auto-tracking is currently supported on the EZVIZ C6 Smart Camera, with updates planned for broader compatibility.

Wireless Motion Detector with Anti-Tamper Protection

Security isn’t just about detection—it’s about safeguarding your devices too. The EZVIZ T1C PIR Sensor features an anti-tamper alarm that instantly notifies you if someone tries to remove or damage the device. This added layer of security ensures that even the sensor itself is protected.

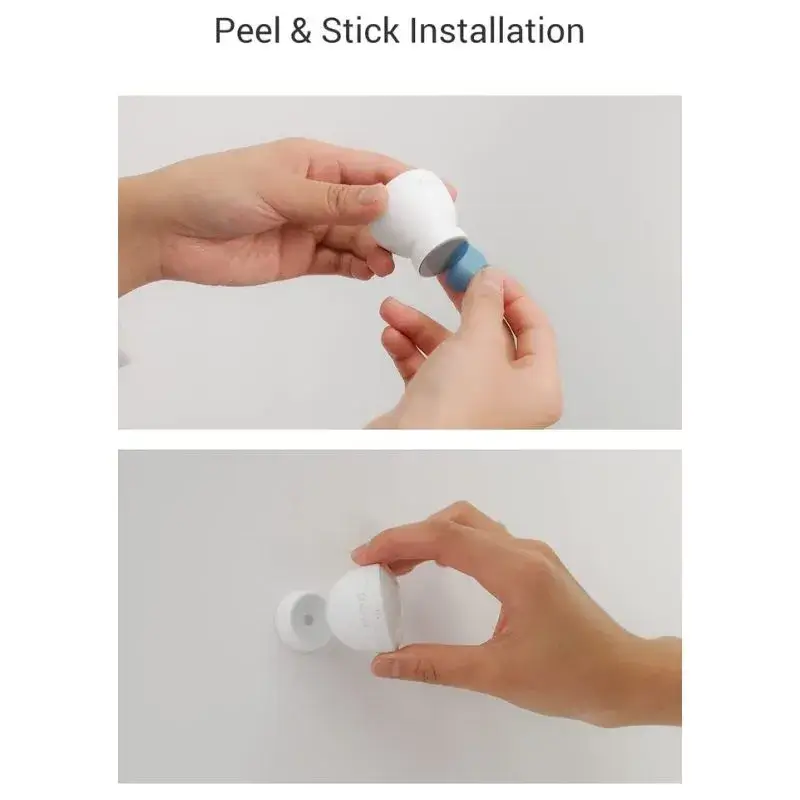

DIY Peel-and-Stick Installation—No Tools Needed

With adhesive mounting and magnetic parts, installing the T1C Motion Sensor takes minutes. You can mount it on walls or ceilings without drilling holes or running wires. Its mini-size design makes it easy to blend into your home’s décor.

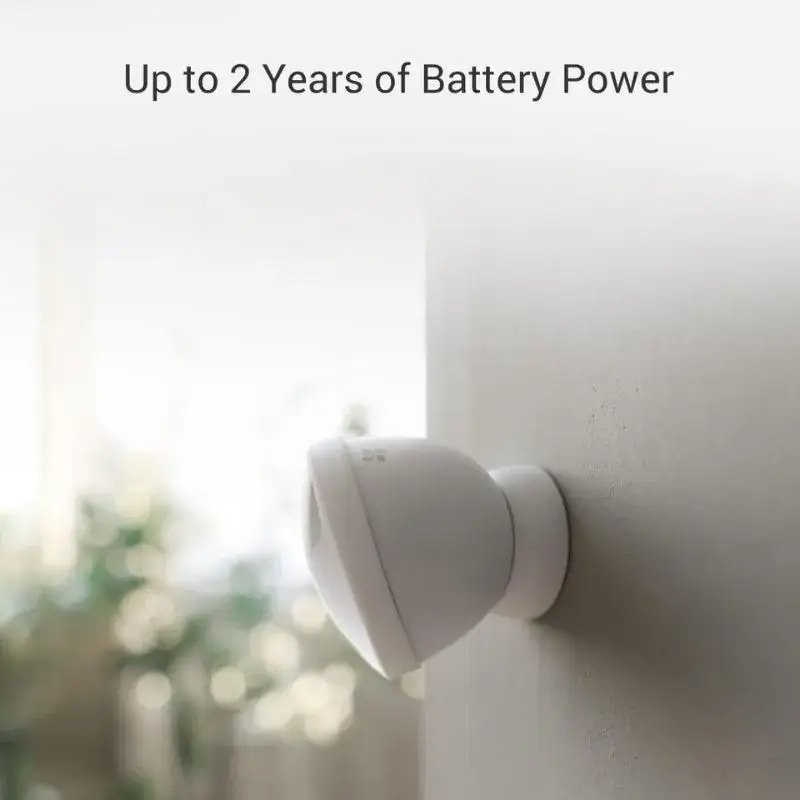

Energy-Efficient PIR Sensor with Long Battery Life

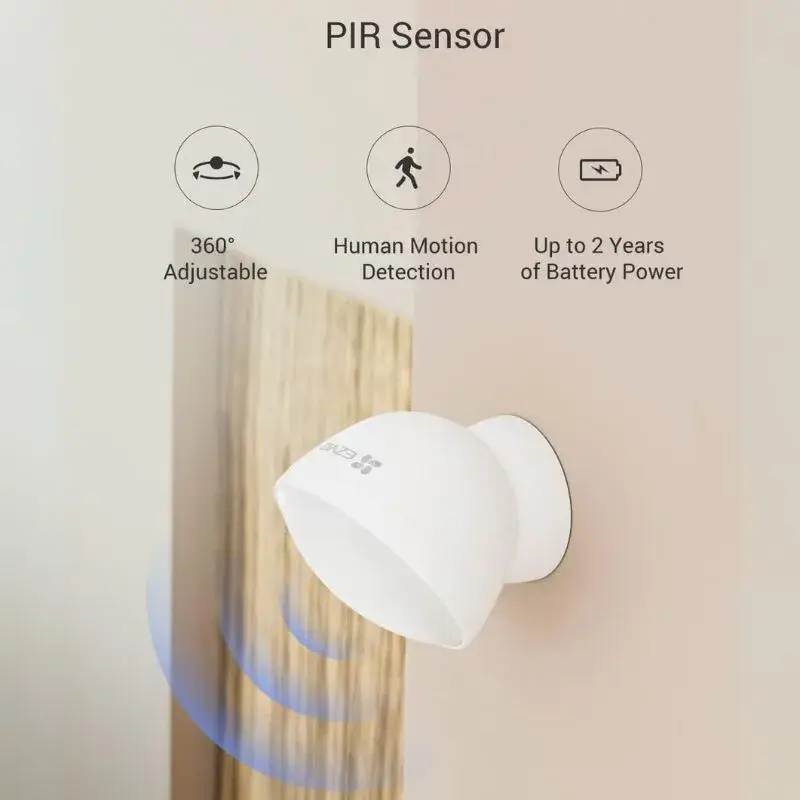

T1C PIR Sensor

Powered by a CR2450 cell battery, the T1C can last:

• Up to 1 year in high-performance mode

• Up to 2 years in energy-saving mode (approx. 30 detections/day)

This means less maintenance and fewer battery replacements, giving you peace of mind.

EZVIZ Smart Motion Sensor – Expandable Security System

The T1C can be integrated with other EZVIZ smart sensors for a complete home security setup. Combine it with:

• EZVIZ Open/Close Sensor for doors and windows

• EZVIZ Smart Button for instant emergency alerts

• EZVIZ Cameras for real-time video monitoring

All devices connect through the EZVIZ Home Gateway for synchronized protection.

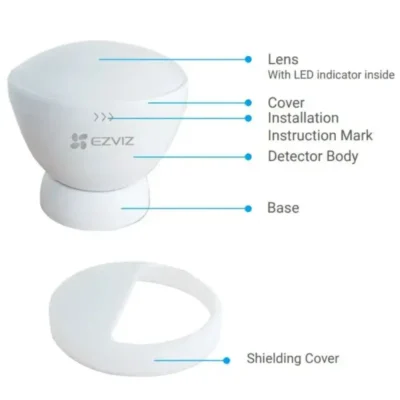

EZVIZ T1C PIR Sensor – Technical Specifications

Model: CS-T1C-A0-BG
Detection Technology: Passive Infrared (PIR)
Detection Distance: Up to 7m / 23 ft
Detection Angle: 90° horizontal, 90° vertical
Adjustability: 360° rotation with pet shield option
Installation Height: 1.8–2.5 m (wall-mounted)
Battery: CR2450 cell battery
Battery Life: Up to 2 years (energy-saving mode)
Installation Method: Adhesive back with magnetic parts (wall/ceiling mount)
Operating Conditions: -10°C to 55°C, humidity ≤95% (non-condensing)
Protocol: ZigBee 3.0
Communication Distance: < 200 m (open environment)
Certifications: CE / FCC / RoHS / REACH / WEEE / UKCA

Why Choose The EZVIZ T1C PIR Motion Sensor? – Final Verdict

The EZVIZ T1C PIR Motion Detector is a smart, reliable, and easy-to-install solution for anyone looking to upgrade their home security system. Its precise human motion detection, pet-friendly design, anti-tamper alarm, and integration with EZVIZ cameras make it one of the most versatile sensors in its category.
Whether you want to protect a single room or expand into a whole-house security network, the T1C delivers dependable performance without complicated wiring or constant maintenance.
